2008-05-28

[pdfFactory SE] 安裝及使用教學:一、伺服器端安裝

pdfFactory Server Edition (PDF製作工廠伺服器版)


1)點擊安裝程式小圖示開始安裝。


2)出現「是否安裝」的詢問視窗,按〔是〕按鈕繼續。


3)出現「印表機驅動程式」視窗,按〔確定〕按鈕繼續。


4)出現「授權合約」視窗,按〔我接受條款〕按鈕,以表示同意授權條款來繼續安裝。


5)安裝完成後,按〔確定〕按鈕離開安裝程式。


6)為了確認是否成功安裝,可以到【開始】→【印表機和傳真】。


7)如果在「印表機和傳真」的視窗中有出現一個名為「pdfFactory」的虛擬印表機,即表示軟體已安裝成功。


8)為了讓用戶端共享這個印表機,我們先檢查這台伺服器的 IP,按【開始】→【執行】。


9)於跳出的「執行」視窗的「開啟」後的欄位輸入「cmd」後,按下〔確定〕按鈕。


10)出現 DOS 視窗後,使用「ipconfig」命令來取得自己的 IP(圖中 IP Address 為 192.168.175.129)。

2008-05-27

PGP Universal Server - High Availability Mode

If you have multiple PGP Universal Servers clustered together, you can choose
to store PGP Universal Web Messenger user account information in either of 2
modes.

* Home Server Mode assigns a home PGP Server for each new PGP
Universal Web Messenger user account. All account information for an
external user exists on a single cluster member.

* High Availability Mode replicates new PGP Universal Web Messenger user
accounts on all clustered PGP Universal Servers. All external user account
information exists on all members of the cluster. If a cluster member is not
functioning, PGP Universal Web Messenger users will still be able to use
the service.

Switching account creation modes does not modify existing accounts. Any user
account created in High Availability Mode will continue on in that mode, even if
High Availability Mode is later turned off. Only users created after you turn the
mode off will be affected. If your PGP Universal Server is in Home Server
Mode, and you later turn on High Availability Mode, only new user accounts will
be replicated across the cluster, and all existing user accounts will remain saved
to a single server.

If you have migrated to PGP Universal Server 2.5 or later and choose to enable
High Availability Mode, only PGP Universal Web Messengers users created
after your migration will be affected. Existing PGP Web Messenger users will
not be converted. If you need to convert existing user accounts, contact PGP
Support (www.pgp.com/support) for help.

PGP Universal Web Messenger messages are replicated to all members of the
cluster, even those not running the service.

Click the Switch Mode button to turn High Availability Mode on or off.
Refer to Clustering your PGP Universal Servers (on page 525) for more
information about clusters.

PGP Universal Server v2.8.3 Administrator Guides - Page 354

2008-05-23

Serv-U 使用者帳號設定

Serv-U 版本:7.1.0.0
下圖 A:帳號設定有問題(小圖示出現驚嘆號)
下圖 B:帳號設定正確


點選有問題的帳號後,按〔Edit〕按鈕來編輯使用者設定。


按下〔OK〕按鈕後設定存取目錄即可。


建議使用〔Wizard〕按鈕功能來設定使用者帳號,才不容易發生上述問題。

[產品購買或試用]

2008-05-22

WinaXe 註冊教學

1)當收到光碟片時,請將光碟片內的「WinaXe」資料夾複製到桌面上,並且將「XWPDLLID.DLL」複製到資料夾內,此時會詢問是否要覆蓋檔案,請點選〔是〕,執行「SETUP」安裝程式。


2)當執行後會出現「Welcome」歡迎視窗,按〔Next〕按鈕進行下一步。


3)接著出現「Software License Agreement」軟體使用合約視窗,按〔Yes〕進行下一步。


4)按下Yes之後會所需輸入的「Name」使用者名稱、「Company」公司名稱、「Serial」序號等欄位皆會自動出現您登記的資料。


附註:如果安裝至此畫面時,使用者名稱以及公司名稱是空白的,並且「Serial」為「0」的話,表示您安裝的是試用版,請重新回到第一個步驟,將「XWPDLLID.DLL」複製到資料夾內後再重新安裝。

2008-05-20

CuteFTP Pro英文版離線註冊方式

注意!此離線註冊方式僅適用於英文版!若您購買的是中文版,請於英文介面下完成離線註冊後,再安裝中文化程式,將程式介面變成中文版。

當使用者電腦無法連上網際網路時可採用此方式註冊本產品。

1)點選〔Enter Serial Numbe〕後進入輸入序號的畫面。


2)於「Serial Number」後方空白欄位輸入您的序號。


3)如果您輸入的序號正確的話,即會出現要求您輸入基本資料的畫面。


4)當您在填入資料前,請先將您的語系轉換成英文,並且在填寫資料的時候請全部填寫英文,填寫完畢後請按〔下一步〕按鈕。


5)如您的連線是正常無問題的,FTP則會自行上傳資料自動的幫您做解鎖的動作,如連線不正常或是無法連線的話則會出現如下的畫面,這裡有4個選項我們要使用E-mail來進行註冊所以請選擇「E-mail a Regis………」這個選項,點選好後請按〔下一步〕。


6)這時會出現警告視窗,請按下〔確定〕繼續做下一步的動作。


7)按下確定後,您的Outlook會自動啟動,這時請將「--Product Registration Data」~「-End of the Message」的內容全部複製下來,將此內容貼至記事本內,將此記事本檔案帶至可上網的電腦。


8)請進入「http://www.globalscape.com/register/」,將記事本內所有的資料貼至框框內,貼上後請按下〔Register Me〕按鈕。


9)登錄成功的話則會出現如圖的畫面,這時請選擇您的版本,如果是Pro或是Home版,請點擊第一個紅色框框內的Click here進行登錄檔下載,如是Server版請點擊第二個紅色框框。


10)下載完畢後,直接按兩下 REG 檔,以執行此登錄檔。


11)出現「確定將登錄資訊新增到登錄?」的警告視窗,按下〔是〕即完成註冊的動作。重新啟動 CureFTP,如果沒出現詢問註冊的畫面,即為成功。

小紅傘伺服器版 AntiVir Server 如何執行立即掃描?

1)從程式集開啟程式。


2)按一下右邊窗格的「Insert new job」小圖示,以便建立新的工作排程。


3)出現精靈畫面後,首先出現「排程命名」視窗,請按〔下一步〕繼續。


4)再來是「選擇排程類型」視窗,預設值為掃描任務(Scan job),請按〔下一步〕繼續。


5)接著是「執行時間設定」視窗,預設值是立即執行(Immediately),請按〔下一步〕繼續。


6)如果要立即掃描本機硬碟,請在下拉式選單中選取「Local Hard Disks」後,按下〔完成〕按鈕,就會馬上執行本機硬碟的掃描。

Kiwi Syslog Daemon 免費版與付費版功能比較

INFO: Free vs Licensed features

免費功能

* GUI based syslog manager
* Free to use for as long as you want
* Messages are displayed in real-time as they are received
* 10 virtual displays for organizing your messages
* Message logging or forwarding of all messages, or based on priority or time of day.
* Auto Split the log file by priority or time of day
* Receives messages via UDP, TCP or SNMP
* Forwards messages via UDP or TCP
* Automatic log file archiving based on a custom schedule
* Messages per hour alarm notification with audible sound or e-mail
* Log file size alarm notification with audible sound or e-mail
* Daily e-mailing of syslog traffic statistics
* Minimizes to the system tray
* Maintains source address when forwarding messages to other syslog hosts
* Syslog statistics with graph of syslog trends (Last 24 hrs/Last 60 mins.)
* Syslog message buffering ensuring messages are not missed under heavy load
* DNS resolution of source host IP addresses with optional domain removal
* DNS caching of up to 100 entries to ensure fast lookups and minimise DNS lookups
* Pre-emptive DNS lookup using up to 10 threads
* Comes with 5 cool skins to change the look of the program
* Selectable display font, display color, and background wallpaper
* Also available as an NT Service
* RFC3164 send and receive options
* Context based help


付費功能

In addition to the features available when using Kiwi Syslog Daemon as freeware, purchasing a license offers more flexibility:

Additional Auto Split log file options

* Host name
* Host IP address
* Domain name
* WELF format tags in message text

Additional filtering options

* Filter on IP Address, Hostname, or Message text.
* Filter out unwanted host messages or take a different logging action depending on the host name.
* Perform an action when a message contains specific keywords.

Additional actions

* Powerful scripting engine for filtering, parsing, custom statistics and performing actions
* Log to an ODBC database. (Access/SQL/Oracle/MySQL/Informix etc)
* Write logs to the Windows NT application Event Log
* Play the sound file of your choice when the filter conditions are met.
* Forward the received Syslog messages via e-mail.
* Send a Syslog message to another host when the filter conditions are met.
* Send an SNMP trap (Version 1)
* Run an external program of your choice when the filter conditions are met.
* Pass values from the received Syslog message to an external program, e-mail message or Syslog message, such as:
o Message text
o Time of message
o Date of message
o Hostname
o Facility
o Level
o Alarm threshold values
o Current Syslog statistics

Additional buffering

* A buffer for 1000 Syslog messages to ensure you don't miss messages under heavy load.
* A buffer for 1000 e-mail messages to ensure all e-mail gets through under heavy load or if the mail server is unavailable temporarily.
* The DNS cache will hold up to 20,000 entries.
* The DNS pre-emptive lookup can spawn up to 100 threads.

Additional alarm options

* Play the sound file of your choice when an alarm condition is reached.
* Run an external program when an alarm condition is reached. This could be a pager or SMS program.



優勢

* Greater flexibility in managing and inspecting log files produced by Kiwi Syslog Daemon. Particularly in larger networks, the ability to provide timely and relevant status and event information is of great value to the network manager. The additional Auto Split log file options support this ability by easy and natural segregation of incoming messages into unique log files. These can then be used to create reports on specific devices, events, conditions, or other items of specific interest to your organisation.
* Additional Filtering options for greater and simpler control of subsequent actions.
* A large number of additional actions that can be automatically initiated as a result of incoming messages, filters, and rules. In particular, the increase in notification methods meets the needs of an increasingly mobile business culture.
* A much larger buffering capacity. This increased capacity greatly increases the scale of the network that can be supported, as well as more reliably handling peak busy periods or message spikes.
* Your support requests will be actioned before freeware users of the product.

其他優勢

* Your name will appear in the 'help about' window, showing you have purchased the full version of Kiwi Syslog Daemon.
* You will also get that warm fuzzy feeling, knowing you have supported the further development of the program.
* Free minor version updates. For example from 7.0.0 to 7.9.9x.
* Discount on major version upgrades. For example from 7.x.x to 8.x.x.

http://www.kiwisyslog.com/kb/info:-free-vs-licensed-features/

2008-05-19

TeeChart .Net for VS.NET.2005 為什麼只有 C## 的 Source Code 而沒有 VB 的?

當您從開始功能表【所有程式】→【Steema TeeChart for .NET...】→【Feature demo】開啟功能展示時。


在「All Features」頁籤裡,可以點右邊窗格的「Example」觀看程式範例。


但是在「Source」頁籤裡卻只有 C## 的 Source Code,那 VB 的 Source Code 呢?


原來!原廠把它藏在這個路徑底下了:
「C:\Program Files\Steema Software\TeeChart for .NET v3 EVALUATION\Examples\DemoProjectVB」

2008-05-16

MIB Browser 匯入 MIB 檔之詳細操作步驟

1)MIB Browser 下載後直接解壓縮,開啟主程式 MibBrowser.exe。

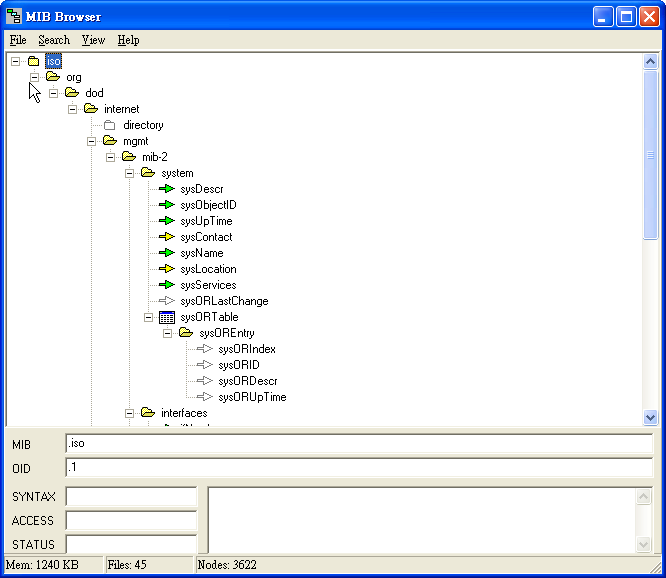

2)開啟結構樹,會有預設的資料存在。


3)為了教學方便,我們先使用下拉式選單【File】→【Clear】的功能清除現有資料。


4)是否刪除資料?請按「Yes」。

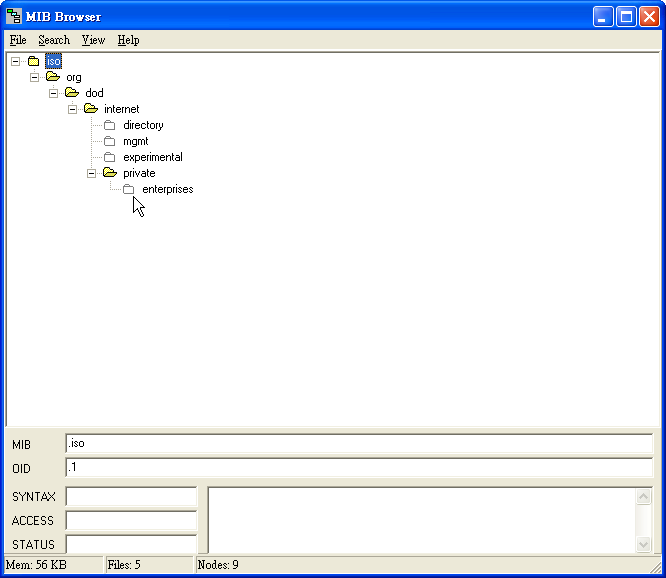

5)清除後結構樹內的資料夾變成空白的清空狀態。


6)使用下拉式選單【File】→【Append MIB file..】功能匯入 MIB 檔。


7)選取 *.mib 檔。


8)會提示需要先匯入的 RFCxxxx-MIB(可於網路搜尋後下載,在此不作示範!),按下〔No〕按鈕。MIB 檔下載資源:SNMP MIB Search & Download


9)匯入完成,請按〔OK〕按鈕。

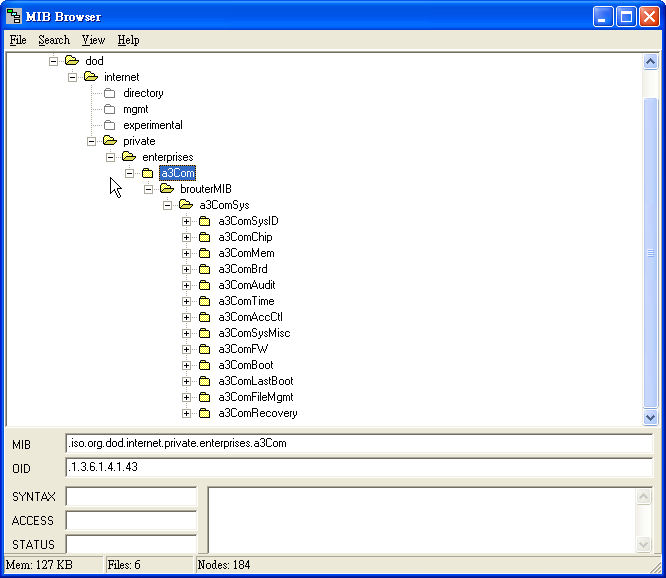

10)可以看到「enterprises」資料夾已有資料。
